titrmlib

A curses-style TUI library for the TI-84 Plus CE. Build terminal-style apps in C with panels, widgets, scenes, dialogs, colors and text styles, on a 53×30 character grid.

titrmlib takes over the calculator's screen the way curses (ncurses) does on a desktop terminal. It draws a 53×30 character grid with its own 5×7 font, reads the keypad, and runs the event loop. You build the UI as a tree of panels, give them content, and hand control to term_run(). Your program never calls graphx itself.

It's written in C for the CE C/C++ Toolchain (CEdev), redraws only the cells that change, and is tested on the host and in the CEmu emulator.

• Panel tree: split any panel into fixed, percentage or weighted-fill children, nested as deep as you need
• Scenes: several full-screen panel trees, one shown at a time, each with its own event handler
• Overlays: panels drawn on top of a scene, such as dialogs, that give focus back when they close
• Clipped output: each panel has its own cursor, and nothing drawn in it can spill outside it
• Focus: your app decides which panel has focus; the focused widget gets keys first
• Widgets: text (with scrolling and auto-scroll, for logs), list, input, button, checkbox, progress bar, plus borders and titles; build your own with a key handler
• Color: foreground and background per panel, from the 256-color palette; reverse video swaps them
• Text styles: bold, italic, underline and strikethrough, per panel or inline in a string, and tab stops
• Glyphs: box-drawing characters and small status icons (check marks, signal bars, arrows) alongside ASCII
• Ticks: timed events for animation and polling

#include "titrm.h"

/* The event handler: return true for events it handled. */
static bool on_event(term_ctx_t *ctx, const term_event_t *ev, void *state) {
    (void)state;
    if (ev->type == TERM_EV_KEY && ev->key == TERM_KEY_CLEAR) {
        term_quit(ctx, 0);
        return true;
    }
    return false;
}

int main(void) {
    term_ctx_t *ctx = term_init();

    term_panel_t *box = term_split(term_root(ctx), TERM_VERTICAL, TERM_FILL);
    term_panel_set_border(box, true);
    term_panel_set_title(box, "titrmlib");
    term_make_text(box, "Hello from titrmlib! Press [clear] to quit.");

    term_run(ctx, on_event, NULL);
    term_shutdown(ctx);
    return 0;
}

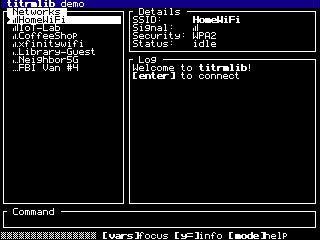

examples/demo/ is a larger program: a mock Wi-Fi manager that uses every feature.

• To build: the CE C/C++ Toolchain (CEdev).
• To run: a TI-84 Plus CE with the CE C libraries installed, and an OS that can run C programs: 5.4 or older, or a newer OS jailbroken with arTIfiCE.

titrmlib is compiled into your program from source. Put the repository inside your CEdev project, for example as a git submodule at lib/titrmlib (or unzip a release there):

git submodule add https://github.com/gavinhsmith/titrmlib lib/titrmlib

Then add its sources to your makefile:

CFLAGS = -Wall -Wextra -Oz -Ilib/titrmlib/src
EXTRA_C_SOURCES = $(wildcard lib/titrmlib/src/*.c)

Keep it inside the project directory. On Windows, CEdev can't build sources reached through ...

The whole API is in src/titrm.h; the API reference lists every function, type and constant.

Panels. term_split(parent, dir, size) adds a child to a panel. dir is TERM_HORIZONTAL (side by side) or TERM_VERTICAL (stacked), and every child of a panel uses the same one. Sizes are TERM_FIXED(cells), TERM_PERCENT(pct), TERM_FILL or TERM_FILL_WEIGHT(w). Fixed and percent sizes are taken first, then fill panels share what's left. Panels can be hidden (term_panel_show) or removed (term_panel_destroy), and their siblings reflow.

Drawing. Output is retained, like curses: what you print into a panel with term_panel_print, _printf, _putc, _move and _set_attr stays there until you overwrite it or call term_panel_clear. Print whenever your state changes, typically in the update function; only the cells that changed are redrawn. Output is clipped to the panel's content area, and only panels without children hold content.

Formatting. term_panel_printf and term_text_appendf format with titrmlib's own small printf (%d %u %x %X %c %s %%, l, widths). For strings that titles, list items and labels take, format with term_snprintf(buf, size, fmt, ...). Calling the C library's printf family links the toolchain's version, about 8 KB more.

Color. term_panel_set_colors(panel, fg, bg) takes palette indices: TERM_COLOR_* names common ones in graphx's default palette, and any index from 0 to 255 works. Like the attribute, colors apply to what is printed next and to term_panel_clear; widgets, borders and titles are drawn in them. Panels split from a panel start with its colors, so coloring a dialog colors everything in it. TERM_ATTR_REVERSE swaps a panel's two colors. The default is white on black.

Styles. TERM_ATTR_BOLD, TERM_ATTR_ITALIC, TERM_ATTR_UNDERLINE and TERM_ATTR_STRIKE combine with each other and with TERM_ATTR_REVERSE, e.g. term_panel_set_attr(p, TERM_ATTR_BOLD | TERM_ATTR_UNDERLINE). To style part of a string, put TERM_S_BOLD, TERM_S_NORMAL and the like inside it: "press " TERM_S_BOLD "enter" TERM_S_NORMAL " to connect". Printed, they set the panel's attribute; in a text widget, list item or label they last until the next one or the end of the line. Underline and strikethrough join across cells; box-drawing characters ignore styles. '\t' moves to the next tab stop, every 4 columns.

Widgets turn a panel into one with built-in content and key handling: term_make_text, term_make_button, term_make_checkbox, term_make_list, term_make_input and term_make_progress. A text widget copies its text and can grow with term_text_append; with term_text_autoscroll it follows the end, which makes it a log. A panel that holds other panels is a container: give it a border and title with term_panel_set_border and term_panel_set_title.

Widgets draw in the panel's attribute (term_panel_set_attr) and colors, and show focus with its focus attribute (term_panel_set_focus_attr); text can be centered with term_panel_set_align. To build your own widget, make a panel focusable, give it a key handler with term_panel_set_keys, print its content, and report changes with term_panel_send(panel, TERM_EV_CHANGE, value).

Scenes. term_root(ctx) is the first scene. term_scene_new(ctx, handler, state) creates another full-screen scene, and term_scene_switch shows it. Only the active scene is drawn and gets events; the others keep their content until you switch back. A scene's handler hears TERM_EV_SCENE_ENTER and TERM_EV_SCENE_LEAVE when it's switched to or away from.

Overlays. term_overlay_open(ctx, col, row, w, h) or term_overlay_open_centered(ctx, w, h) returns a panel drawn on top of the active scene; split it and fill it like any panel. term_overlay_close() removes it and gives focus back to the panel that had it when the overlay opened, if focus was inside the overlay or empty. Overlays aren't modal: your app can move focus between an overlay and what's under it.

Events. Handlers receive:

• TERM_EV_START, once before the first frame
• TERM_EV_KEY, for keys the focused widget didn't use
• TERM_EV_SUBMIT, when the user confirms with [enter]: an input, a button, or a list item (value is its index)
• TERM_EV_CHANGE, when the user changes a widget: moves a list selection, edits an input, or toggles a checkbox
• TERM_EV_FOCUS_LOST, when the focused panel is hidden or destroyed
• TERM_EV_TICK, every interval set with term_set_tick(ctx, ms)

An event goes to the active scene's handler first, then to the global handler passed to term_run(). A handler returns true when it has handled the event, which stops it there.

Focus. Your app moves focus with term_focus(ctx, panel); nothing is focused until it does, and titrmlib never moves it on its own. [vars] is an ordinary key (TERM_KEY_VARS), so you can use it to cycle focus, as the demo does. Switching scenes clears focus if it was on the old scene. Input, list, button and checkbox widgets are focusable; other panels, such as a text log that should scroll, opt in with term_panel_set_focusable.

Keys. [alpha] types one upper-case letter and [2nd][alpha] locks alpha; [alpha] itself arrives as TERM_KEY_ALPHA, and term_alpha_mode() reports the state. Held arrow keys and [del] repeat. term_quit(ctx, result) ends term_run(), which returns result.

Special characters. Codes outside printable ASCII follow code page 437, the IBM PC character set: box drawing (single and double lines), blocks and shades, accented letters, Greek and math symbols. The exception is 0x13–0x16, which hold signal-strength icons. The characters titrmlib uses are named TERM_CH_* (e.g. TERM_CH_SIG3), and the same characters as string literals are TERM_S_*: TERM_S_SIG3 " HomeWiFi". Any other code can go straight into a string ("caf\x82" prints café). 0x00, \n (0x0A) and \r (0x0D) can't be printed from a string, so place those glyphs with term_put. The full table is in src/FONT.md.

• One built-in font.
• Screens using many color pairs at once draw more slowly: the pixel tables for the six most recent pairs are cached.
• Up to TERM_MAX_PANELS panels, and TERM_INPUT_MAX (48) characters in an input field. The pool holds 32 panels by default, at about 80 bytes of RAM each; build with e.g. -DTERM_MAX_PANELS=12 to make it smaller.
• TERM_LINE_GAP 0 gives 34 rows instead of 30, but capitals and digits then touch the line above.

• tinclib-config: the Wi-Fi setup app for tinclib, which gives TI-84 Plus CE programs Wi-Fi, HTTP and HTTPS through an ESP8266 board.

Using titrmlib in your project? Open an issue or a pull request to add it here.

• API reference
• CONTRIBUTING.md: development setup, building, unit and hardware tests, reporting issues
• ROADMAP.md: planned features and known issues
• DESIGN.md: design of the retained panels, scenes and overlays (phase 2)
• src/FONT.md: character codes and glyphs
• AGENTS.md: design notes for AI coding agents

titrmlib is licensed under the Apache License 2.0 (LICENSE.md). The font is derived from petabyt/font (MIT, tools/petabyt-font/LICENSE).
